Dreo DR-KCM001S ChefMaker Combi Air Fryer User Manual

Dreo DR-KCM001S ChefMaker Combi Air Fryer

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS. BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN YOUR USER GUIDE AND ON THE APPLIANCE. When using electrical units, basic safety precautions should always be followed including the following:

• DO NOT touch hot surfaces. Use the handle.
• DO NOT block any ventilation openings. Hot steam is released through the air outlet. Keep your hands and face clear of openings.
• To protect against electrical shock, do not immerse the appliance, cord, or plug in water or other liquid.

Intended Use

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Close supervision is necessary when any appliance is used by or near children.
• Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Electricity Safety

1. Check if the voltage indicated on the appliance corresponds to the local main voltage before you connect the appliance.
2. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Always make sure that the plug is inserted properly into a wall outlet.
3. Do not let the cord hang over the edge of the table or counter, or touch a hot surface.
4. DO NOT plug in the appliance or operate the control panel with wet hands.
5. Never connect this appliance to an external timer switch or separate remote control system to avoid a hazardous situation.
6. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop, before you remove the pan from the appliance.
7. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn off the appliance, then remove the plug from the wall outlet.

Electromagnetic Fields

This oven complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

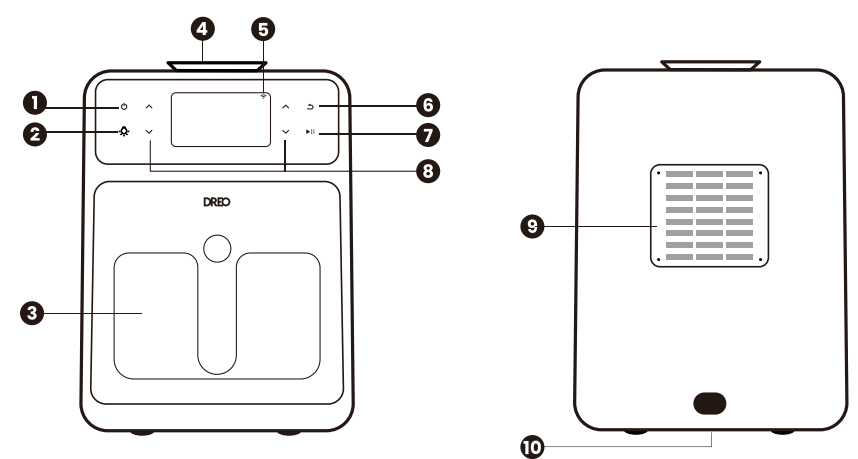

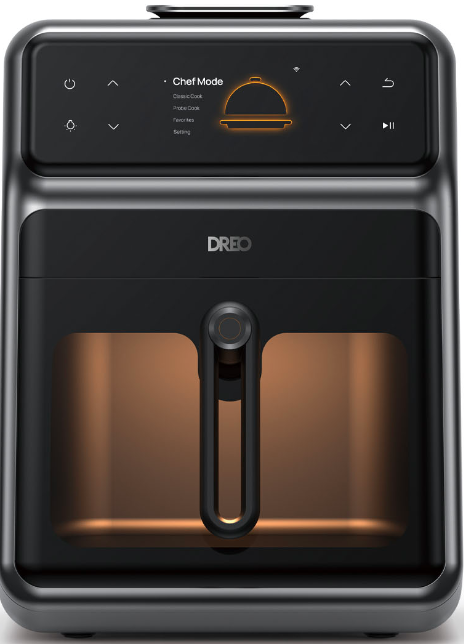

GETTING TO KNOW YOUR APPLIANCE

1. Power ON/OFF
2. Interior Light
3. Non-stick Basket
4. Water Tank
5. Wi-Fi Status
6. Cancel/Back
7. Confirm/Pause
8. Menu Navigation
9. Air Outlet
10. Air Inlet

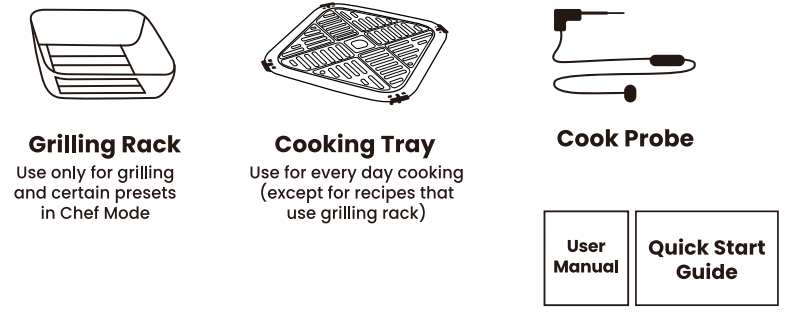

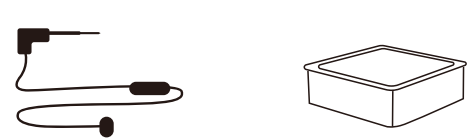

The right tools for a perfect cook

Cook Probe

• Track doneness closely and achieve perfect results.
• Not recommended for frozen protein or cuts thinner than 1 inch (ChefMaker will display which recipes need it.)

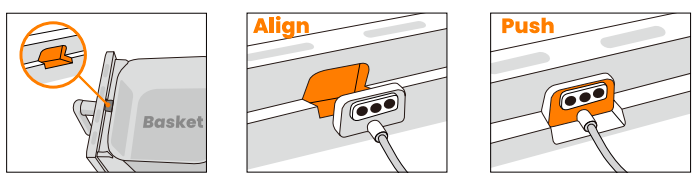

1. Find the Cooking Probe slot inside your appliance basket.
2. Make sure the three pins are facing outwards.
3. Push the Cooking Probe until you hear the “click”.

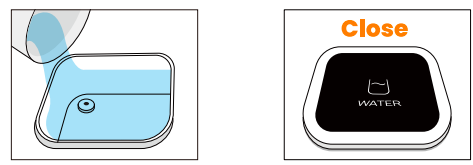

Water tank

• Add extra tenderness to your favorite meals. (ChefMaker will display which recipes need it)

1. Fill up before using programs with water.
2. Keep the water tank lid closed while cooking.

CONNECTING TO YOUR APPLIANCE

Download the Dreo app to get the most out of your appliance!

1. Launch the Dreo app and sign in or create an account by following the in-app instructions.
2. On your appliance go to Settings› WLAN› Press • II. Make sure the display shows “Waiting for pairing”
3. Tap Add Device in the Dreo app and select the appliance you want to link.
4. Connect to your preferred Wi-Fi network through the Dreo app.
5. You’re now ready to control the appliance on your app.

GETTING STARTED

Before First Use

• Remove all plastic packaging from your appliance.
• Clean all the cooking accessories and let them dry at room temperature. (see cleaning instructions, pages 19-20).

Initial Use

1. Tap to turn on.
2. Select Classic Cook> Air Fry> Set temperature at 380ºF and time to 15 minutes.
3. After heating is done, let the fryer cool, then wash the basket and cooking tray with soapy water and a non-abrasive sponge.

CHOOSING THE RIGHT MODE

Your new appliance includes a series of modes to simplify your cooking and magnify your taste. Depending on what you are planning to cook, you can choose from:

Chef Mode

Achieve perfect results with the ingredient-based master chef presets.

Not recommended for frozen protein or cuts thinner than 1 inch.

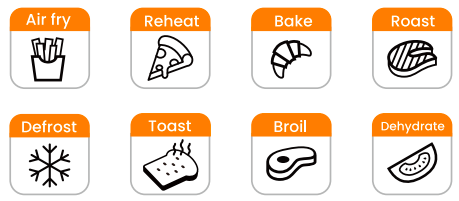

Classic Cook

As simple as choosing your cooking style.

Probe Cook

Take full control of temperature settings just like master chefs do

TIPS FOR CHEFMAKER MODES

Make sure to use the cook probe and water tank when shown in your recipe.

• Cook Probe (Probe)
• Water Tank (Water)

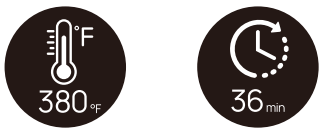

Classic Cook

ChefMaker recommends the optimum temperature and time for your cooking style.

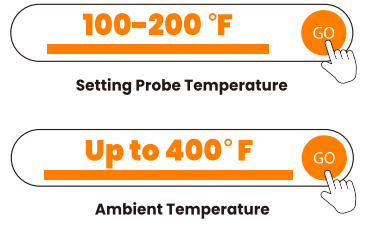

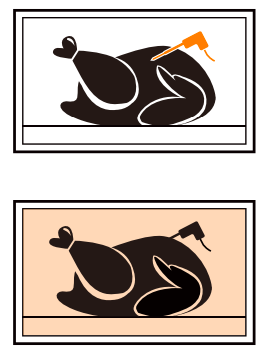

Probe Cook

• Set your desired doneness with the target probe temperature.
• Ambient temperature helps you cook the surface of your food.

CLEANING AND MAINTENANCE

• Always clean your appliance after every use.
• Turn off and unplug the appliance. Allow it to be cool before cleaning.
• You can pull out the basket for faster cooling.
• When cleaning, it is recommended to use a non-abrasive liquid cleanser and sponge.

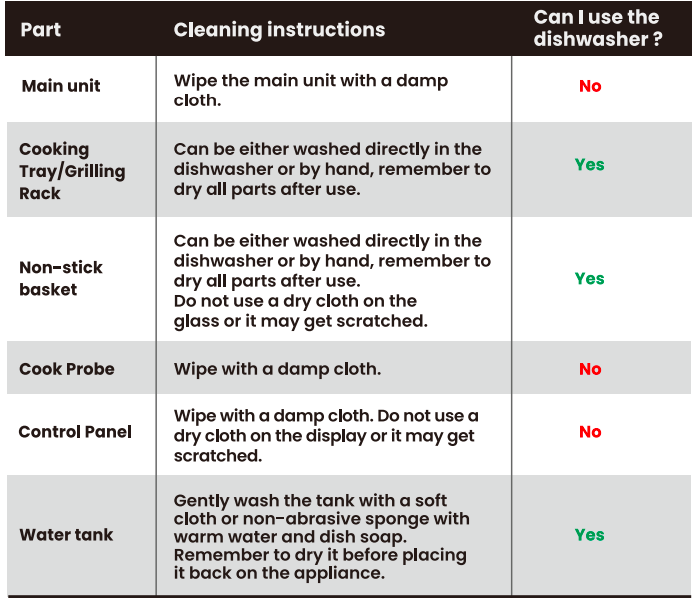

Main parts

Note: To extend the life of your appliance, do not use abrasive elements like cleaners, metal scouring pads, or metal utensils to wipe clean any part/accessory of your appliance.

Water tank maintenance

To ensure optimum performance during your cooking, it is recommended:

• Dry out the water tank after cooking.
• Run a deep cleaning of pipes and nozzles at least once every 3 months.

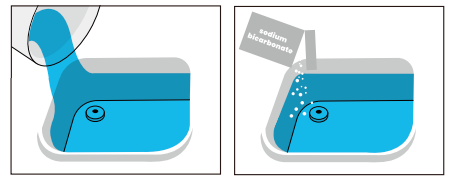

Descaling

Steps:

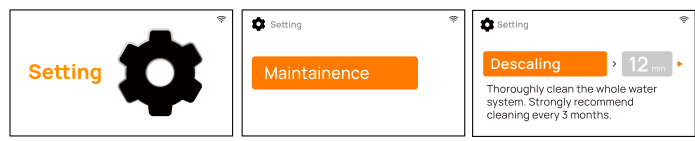

1. Go to settings › Maintainance › Descaling.

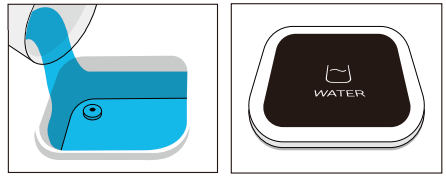

2. Fill up the water tank and add some baking soda. Make sure the basket is in position and then confirm.
3. goat, the water trying is once more, make sure the basket is in position and then confirm, After cleaning is done, drain the water from the basket.

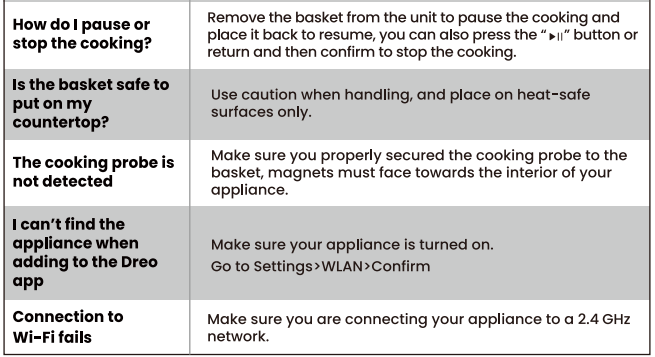

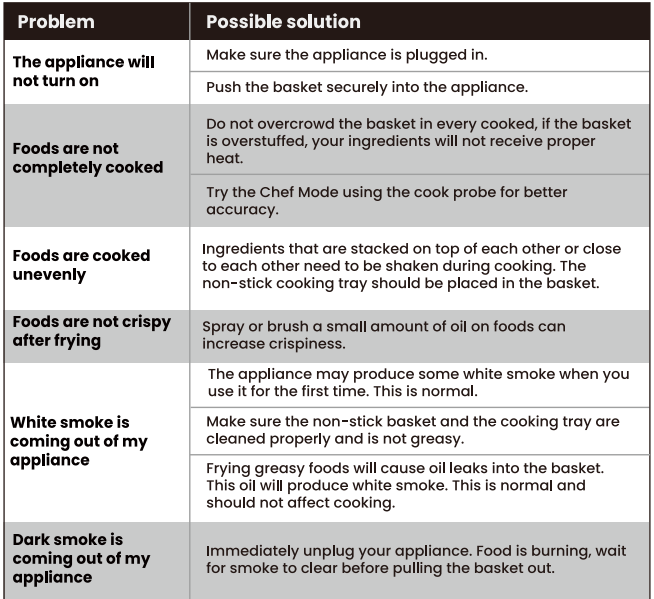

Troubleshooting

DREO CUSTOMER CARE

Default 12-Month Warranty

This appliance is covered by a Dreo warranty for 12 months from the date of its original purchase.

Extend Your Warranty

Extend your warranty by registering your new appliance on our website warranty.

The warranty will not apply in cases of:

1. Accidents, misuse, or repairs performed by unauthorized personnel.
2. Any unit that has been tampered with or used for commercial purposes.
3. Normal wear and tear of wearable parts.
4. Use of force, damage caused by external influences.
5. Damage caused by non-observance of the User Manual, e.g. connection to an unsuitable mains supply or noncompliance with the instructions.
6. Partially or completely dismantled appliances.
7. Defects caused by or resulting from damages from shipping or from repairs, service, or alteration to the product or any of its parts that have been performed by a repair person not authorized by Dreo.

We can only provide after-sales service for products that are sold by Dreo or Dreo-authorized retailers and distributors. If you have purchased the appliance from a different place, please contact your seller for return and warranty issues.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for Consumer ISM equipment, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. “If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

We’re Here to Help!

support@dreo.com

(888) 290-1688 Mon – Fri, 9:00 am-5:00 pm PST/PDT

www.dreo.com
Shenzhen Hesung Innovation
Technology Co., LTD 26F, Bldg A7, Creative City, Shenzhen, China
